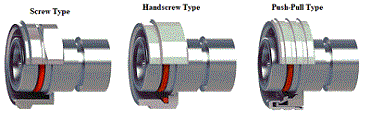

| • | Low IMD and low VSWR provides improved system performance. |
| • | Self-flaring design ensures ease of installation with standard hand tool. |
| • | Pre-assembled gasket protects against dust (P68) and water (IP68) per IEC 169. |
| • | Limited internal junctions reduce sources of IMD. |
| • | Silver-plated contacts and silver or white bronze-plated bodies deliver a high conductivity and corrosion resistance for a long, trouble-free life. |
| • | Easy-Hex coupling nut allows tightening by hand or with a standard wrench for ease of mating. |
| • | Antennas | • | Base Stations | • | Broadcast |
| • | Cable Assembly | • | Components (Control) | • | Lightning Protection |
| • | Satcom |
| Electrical | |
| Impedance | 50 Ω |
| Frequency Range |
DC - 7.5 GHz |
| Return Loss | 30 dB @ DC - 1.0 GHz (3 ft. assembly) 28 dB @ 1.0 - 2.0 GHz 21 dB @ 2.0 - 3.0 GHz |
| RF-Leakage | 125 dB minimum |
| Voltage Rating (at sea level) | ≥ 813 Vrms (depending on cable) |
| Average (Peak) Power Maximums | 3.0 kW (13.2 kW) |
| Contact Resistance |
center contact: ≤ 0.4 mΩ |
| Insulation Resistance | 5,000 MΩ minimum |
| Insertion Loss Maximum | 0.05 dB @ 1 GHz |
| Dielectric Withstanding Voltage | 2,300 Vrms (at sea level) |
| 3rd order Inter-Modulation Distortion | -120 dBm/ - 165 dBc typical (+43 dBm carriers) |
| Mechanical | |
| Mating | M29 x 1.5 threaded coupling nut |
| Attachment Method (inner/outer) | captivated/compression |
| Coupling Torque, min./max. | 15/20 lb-ft (20/28 N-m) |
| Coupling Nut Retention force | 225 lbs (1000N) min. |
| Assembly Torque (body/clamp nut) | positive stop, 18/20 lb-ft (25/30 N-m) |
| Durability (matings) | 500 cycles min. (DIN 47275, 2/10.82 section 2.10) |
| Environmental | |
| Temperature Range | -65°C to +165°C |
| Thermal Shock | IEC 68, part 2-14, test Na |
| Immersion | IEC 529, IP68 |
| Corrosion | IEC 68, part 2-1, test Ka |
| Vibration | IEC 68, part 2-6 |
| Mechanical Shock | IEC 68, part 2-27 |
| Material | |
| Male Contact | Brass |
| Female Contact | Beryllium copper |
| Other Metal Parts | Brass per ASTM-B16, silver or white bronze plated |
| Insulator | PTFE per ASTM-D1457 |
| Gasket | Silicone rubber (weatherproof), ZZ-R-75 |
| Protective Coating | Clear chromate (on silver plating) |
Note: These characteristics are typical but may not apply to all connectors.
| Electrical | |
| Impedance | 50 Ω |
| Frequency Range | DC - 7.5 GHz |
| VSWR | 1.3 max. @ DC - 7 GHz |
| RF-leakage | 125 dB minimum |
| Voltage Rating (at sea level) | ≥2,700 Vrms (depending on cable) |
| Contact Resistance | center contact: ≤ 0.4 mΩ outer contact: ≤ 1.5 mΩ |
| Insulation Resistance | 5,000 MΩ minimum |
| Dielectric Withstanding Voltage | 4,000 Vrms (at sea level) |
| 3rd order Inter-Modulation Distortion | -120 dBm / -165 dBc typical (+43 dBm carriers) |
| Mechanical | |
| Mating | M29 x 1.5 threaded coupling nut |
| Attachment Method (inner/outer) | captivated or solder/solder |
| Center Conductor Cable Affixment | Socket or solder |
| Coupling Torque, min./max. | 15/20 lb-ft (20/28 N-m) |
| Coupling Nut Retention Force | 225 lbs (1000N) min. |
| Durability (matings) | 500 cycles min. (DIN 47275, 2/10.82 section 2.10) |
| Environmental | |
| Temperature Range | -65°C to +165°C |
| Thermal Shock | IEC 68, part 2-14, test Na |
| Immersion | IEC 529, IP68 |
| Corrosion | IEC 68, part 2-1, test Ka |
| Vibration | IEC 68, part 2-6 |
| Mechanical Shock | IEC 68, part 2-27 |
| Material | |
| Body and Outer Contacts | Brass per ASTM-B16, silver or white bronze plated |
| Male Contact | Brass |
| Female Contact | Beryllium copper |
| Other Metal Parts | Brass per ASTM-B16, silver or white bronze plated |
| Insulator | PTFE per ASTM-D1457 |
| Gasket | Silicone rubber (weatherproof), ZZ-R-75 |
| Protective Coating | Clear chromate (on silver plating) |
